Digital Multimeters for Solar Professionals: A Guide to Essential Tools
Posted on1 Week ago
by
Why Digital Multimeters Matter in Solar Applications
Digital multimeters are crucial for the installation, maintenance, and troubleshooting of solar photovoltaic (PV) systems. These tools measure voltage, current (with external clamps), and resistance, offering critical insights to optimize system performance and maintain safety. Common uses for digital multimeters in solar energy include:
Installation: Verifying correct wiring, panel, and inverter setup, ensuring correct polarity.
Maintenance: Performing routine checks to ensure systems are working efficiently.
Troubleshooting: Identifying and addressing issues like faulty components, poor connections, or inverter failures.
Safety: Confirming proper grounding and detecting potential hazards (often using additional equipment besides standard DMMs).
Fluke Digital Multimeters for Solar Professionals
Fluke offers a range of digital multimeters designed for solar professionals’ unique needs. Below, we highlight several Fluke models, including the Fluke 283 FC, and explore how each is suited for various solar environments based on their voltage and CAT (Category) ratings.
.png)

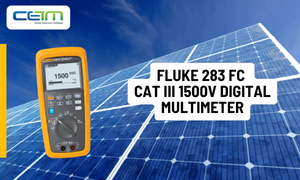

Fluke 283 FC True-RMS Digital Multimeter for Solar Applications
The Fluke 283 FC is a high-performance multimeter built for high-voltage solar environments. With its CAT III 1500 V and CAT IV 1000 V ratings, it's designed for utility-scale PV systems and other high-voltage settings.
Key Features:
Fluke 87V Industrial Multimeter
The Fluke 87V is a robust tool designed for industrial settings, including large-scale solar installations. With its CAT III 1000 V and CAT IV 600 V ratings, this model is ideal for handling higher voltage applications.
Key Features:
Fluke 117 Electrician’s Multimeter
The Fluke 117 is a versatile tool ideal for residential and small-to-medium-sized commercial solar applications. With a CAT III 600 V rating, it’s perfect for lower voltage environments typically found in smaller solar installations.
Key Features:
Decision Guide: Choosing the Right Fluke Multimeter for Solar Applications
Selecting the best multimeter for your solar setup depends on factors such as voltage requirements, safety, and the specific tasks you need to perform. This guide can help you decide:
Voltage Levels and CAT Ratings:
Measurement Needs:
Special Features:
Digital multimeters are vital tools for solar professionals, offering the measurements needed to optimize the safety, performance, and reliability of solar PV systems. By understanding your solar application’s specific needs and the capabilities of each Fluke multimeter, you can make an informed decision. Whether you need basic functionality or advanced diagnostics, Fluke provides the right tools to ensure your solar installations run efficiently.
Digital multimeters are crucial for the installation, maintenance, and troubleshooting of solar photovoltaic (PV) systems. These tools measure voltage, current (with external clamps), and resistance, offering critical insights to optimize system performance and maintain safety. Common uses for digital multimeters in solar energy include:
Installation: Verifying correct wiring, panel, and inverter setup, ensuring correct polarity.
Maintenance: Performing routine checks to ensure systems are working efficiently.
Troubleshooting: Identifying and addressing issues like faulty components, poor connections, or inverter failures.
Safety: Confirming proper grounding and detecting potential hazards (often using additional equipment besides standard DMMs).
Fluke Digital Multimeters for Solar Professionals
Fluke offers a range of digital multimeters designed for solar professionals’ unique needs. Below, we highlight several Fluke models, including the Fluke 283 FC, and explore how each is suited for various solar environments based on their voltage and CAT (Category) ratings.
Fluke 283 FC True-RMS Digital Multimeter for Solar Applications
The Fluke 283 FC is a high-performance multimeter built for high-voltage solar environments. With its CAT III 1500 V and CAT IV 1000 V ratings, it's designed for utility-scale PV systems and other high-voltage settings.
Key Features:
- CAT III 1500 V / CAT IV 1000 V Rating: Perfect for high-voltage applications.
- True-RMS Measurement: Ensures accurate readings for AC voltage and current.
- Wireless Connectivity: Seamlessly transfers data to mobile devices via Fluke Connect™.
- User-Defined Limit Gauge: Aids in quick troubleshooting.
- Backlight Display: Easy to read in various lighting conditions.
- Wireless Current Clamp: Measures AC and DC current up to 60 A.
Fluke 87V Industrial Multimeter
The Fluke 87V is a robust tool designed for industrial settings, including large-scale solar installations. With its CAT III 1000 V and CAT IV 600 V ratings, this model is ideal for handling higher voltage applications.
Key Features:
- CAT III 1000 V / CAT IV 600 V Rating: Suitable for industrial and commercial solar setups.
- True-RMS Measurement: Ensures accurate readings for complex signals.
- Temperature Measurement: Includes a built-in thermometer for additional diagnostics.
- Diode Measurement: Useful for checking diodes in PV systems.
Fluke 117 Electrician’s Multimeter
The Fluke 117 is a versatile tool ideal for residential and small-to-medium-sized commercial solar applications. With a CAT III 600 V rating, it’s perfect for lower voltage environments typically found in smaller solar installations.
Key Features:
- CAT III 600 V Rating: Designed for residential and commercial applications.
- True-RMS Measurement: Accurate readings for non-linear loads.
- Compact Design: Easy to use in tight spaces.
- VoltAlert™ Non-Contact Voltage Detection: Adds extra safety by detecting live wires without physical contact.
Decision Guide: Choosing the Right Fluke Multimeter for Solar Applications
Selecting the best multimeter for your solar setup depends on factors such as voltage requirements, safety, and the specific tasks you need to perform. This guide can help you decide:
Voltage Levels and CAT Ratings:
- Up to 600 V (Low to Medium Voltage): For residential and small commercial installations, the Fluke 117 with a CAT III 600 V rating is sufficient.
- Up to 1000 V (Medium Voltage): For larger commercial and industrial setups, the Fluke 87V with a CAT III 1000 V rating is ideal.
- Up to 1500 V (High Voltage): For utility-scale PV systems and high-voltage settings, the Fluke 283 FC with a CAT III 1500 V rating is the best choice.
Measurement Needs:
- Basic Measurements (Voltage, Current, Resistance): The Fluke 117 covers standard measurements for residential setups.
- Advanced Diagnostics (Temperature, High-Resolution Accuracy): For more complex tasks, the Fluke 87V is perfect.
- High-Voltage Environments & Wireless Data: The Fluke 283 FC excels with its advanced features for large-scale installations.
Special Features:
- Wireless Connectivity: The Fluke 283 FC, paired with the wireless current clamp, allows for remote monitoring and data logging.
- Non-Contact Voltage Detection: The Fluke 117’s VoltAlert™ feature provides additional safety.
- Temperature Measurement: The Fluke 87V’s thermometer is useful for diagnosing temperature-related issues in solar installations.
Digital multimeters are vital tools for solar professionals, offering the measurements needed to optimize the safety, performance, and reliability of solar PV systems. By understanding your solar application’s specific needs and the capabilities of each Fluke multimeter, you can make an informed decision. Whether you need basic functionality or advanced diagnostics, Fluke provides the right tools to ensure your solar installations run efficiently.
